1600 SERIES SWIVEL CASTERS (600-1600 LBS) US Patent 7,065,828

The 1600 Series swivel casters are engineered for heavy duty industrial applications.  These casters have a low profile and are interchangeable with our 1000 Series leveling casters.  For more information about the high quality features and mounting options that are offered with these products see the Overview panel.

Quality Features
  • tempered stainless construction is stronger with 30-50% less weight
  • absorbs up to 65% more shock than other casters
  • smooth, lustrous stainless finish
  • dual wheels provide differential action for improved mobility and maximum floor protection
  • o-ring sealed upper thrust bearings
  • CS Option: 85% stainless with some zinc plated hardware.
  • SS Option: 100% stainless steel with 440C stainless bearings
General SpecificationsDimensions in Inches/Pounds.  CAD Files & Spec Sheets
WHEEL DIA TREAD WIDTH NO. OF WHEELS SWIVEL RADIUS OVERALL HEIGHT KINGPIN THREAD WHEEL MATERIAL WHEEL BEARING LOAD CAPACITY
4.00 3.50 2 5.00 5.25: TK
5.38: SB
3/4-10 PHENOLIC ROLLER 1200
POLYURETHANE PRECISION 1600
Mounting Options

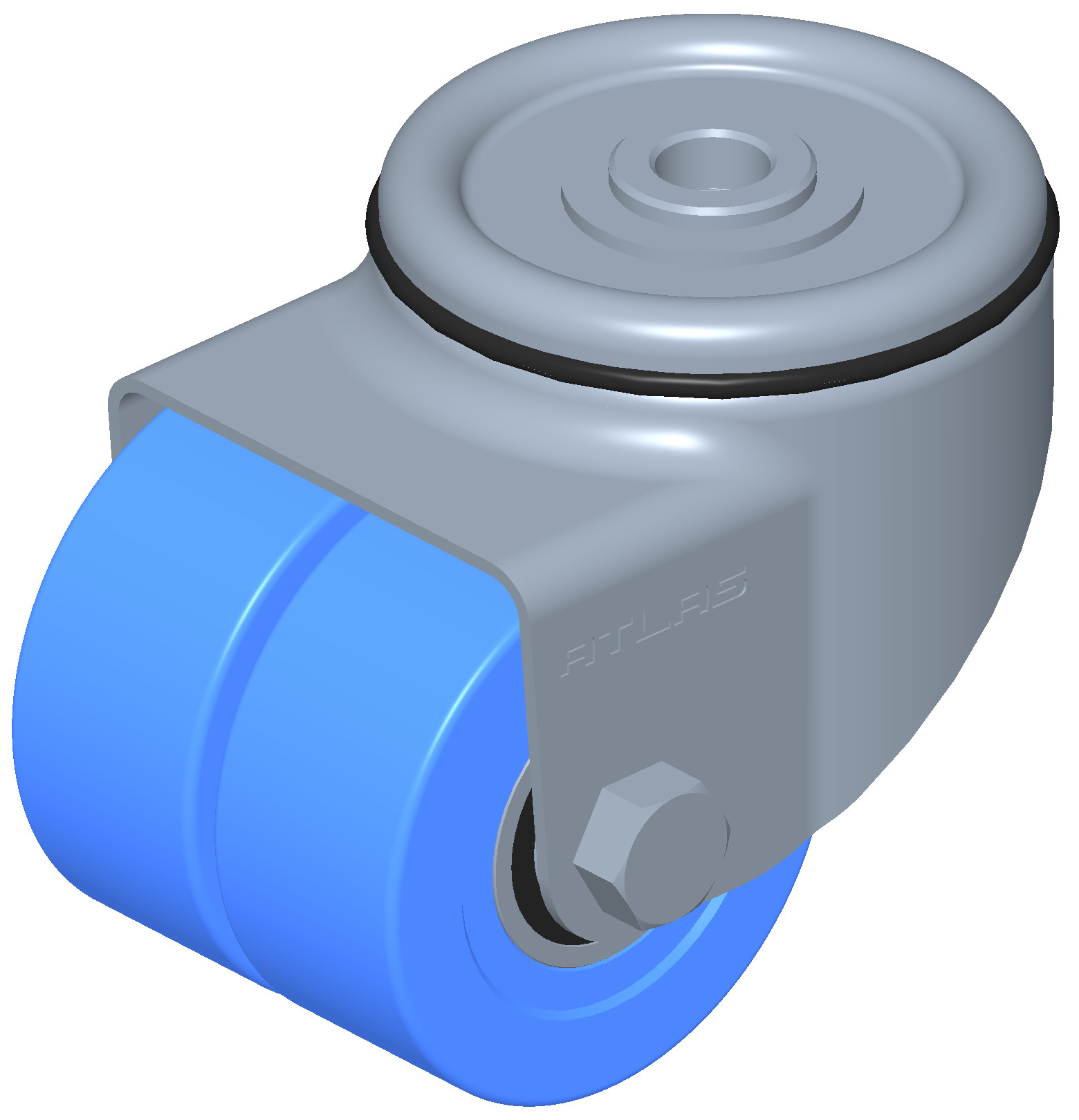

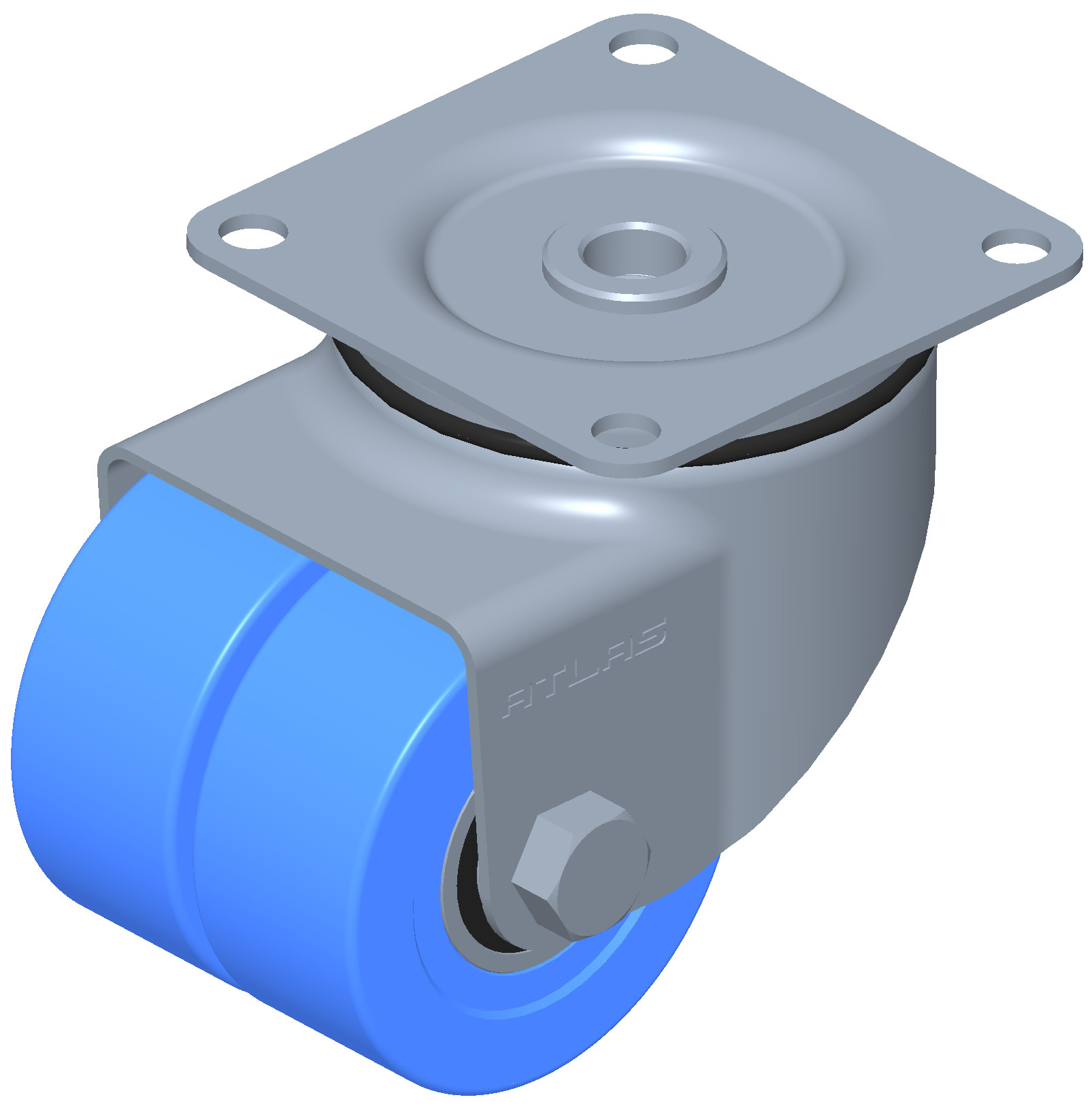

SQUARE BASEPLATE (SB) THREADED KINGPIN (TK)
NOTES

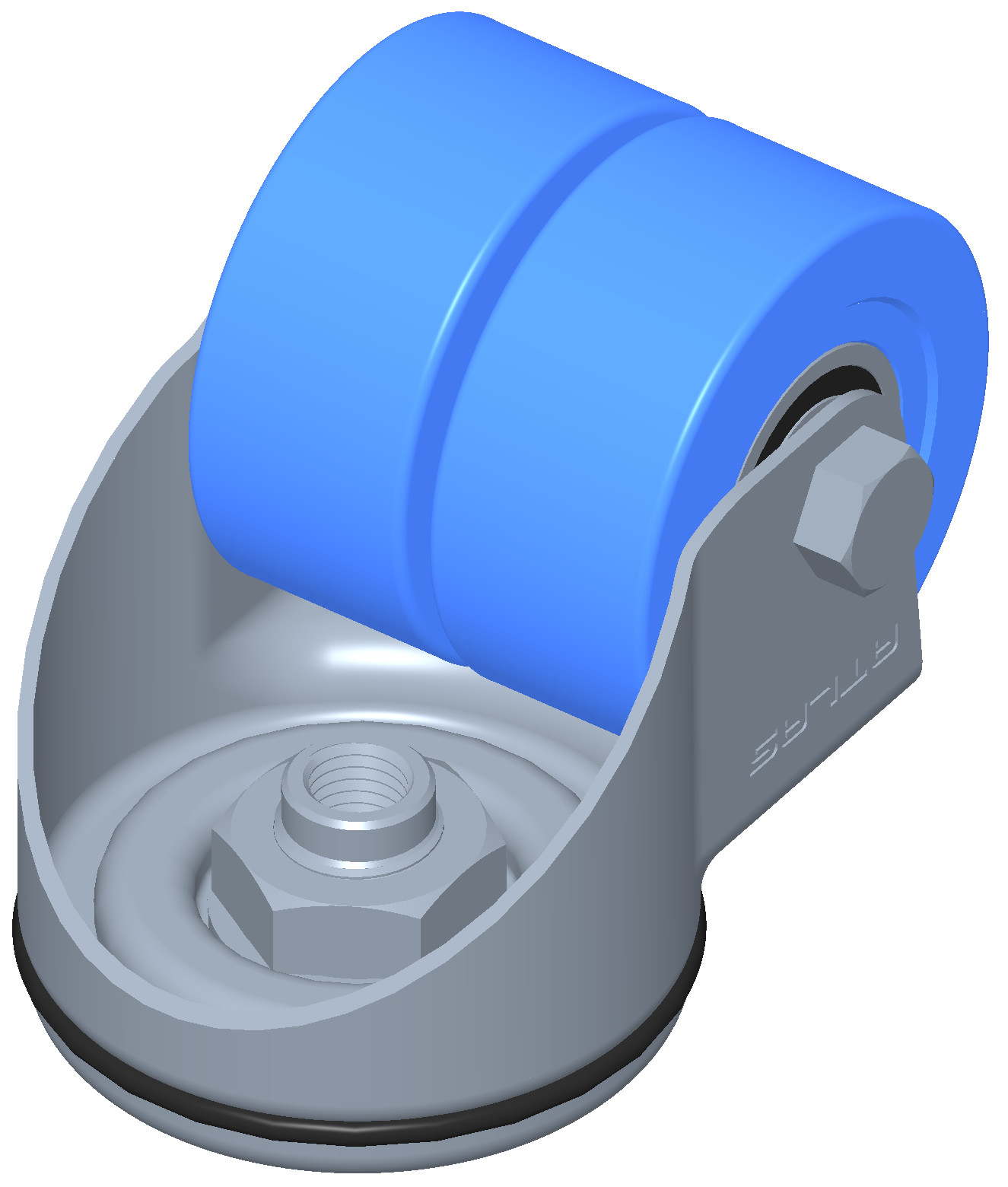

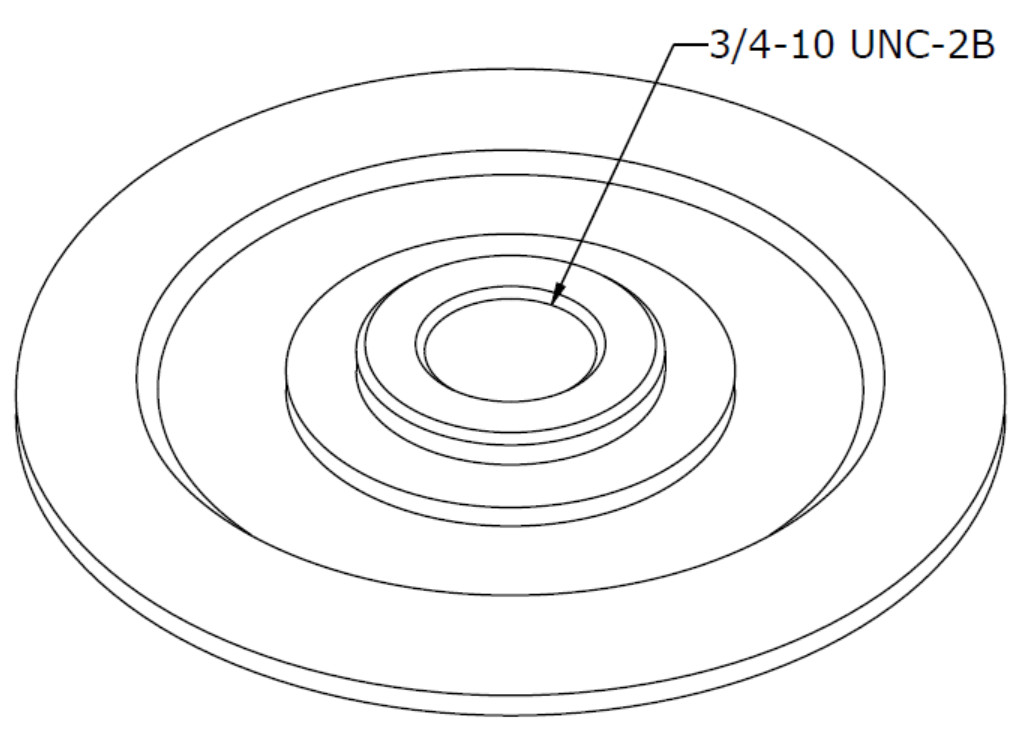

  • use a 3/4-10 bolt from the top to fasten the Threaded Kingpin (TK) version to a frame. Must use a thread locking compound to prevent loosening over time.
  • proper support is required for the upper raceway when using the Threaded Kingpin (TK) mounting option.
