1600 SERIES LEVELING CASTERS (600-1600 LBS) US Patent 6,637,071

The 1600 Series leveling casters are engineered for heavy duty applications where mobility and leveling are required.  They are offered with a square baseplate mounting option and two heavy duty stem mounting options.  Levelers have a different part number and must be purchased separately. For more information about the high quality features and mounting options that are offered with these products see the Overview panel.

Quality Features
  • tempered stainless construction is stronger with 30-50% less weight
  • smooth, lustrous stainless finish
  • dual wheels provide differential action for improved mobility and maximum floor protection
  • o-ring sealed upper thrust bearings
  • CS Option: 85% stainless with some zinc plated steel hardware.
  • SS Option: 100% stainless steel with 440C stainless bearings
General SpecificationsDimensions in Inches/Pounds.  CAD Files & Spec Sheets
WHEEL DIA TREAD WIDTH NO. OF WHEELS SWIVEL RADIUS OVERALL HEIGHT LEVELER STUD THREAD WHEEL MATERIAL WHEEL BEARING LOAD CAPACITY
4.00 3.50 2 5.00 5.25: HT/HX
5.38: SB
3/4-10: SB
13/16-12: HT/HX
PHENOLIC ROLLER 1200
POLYURETHANE PRECISION 1600
Mounting Options

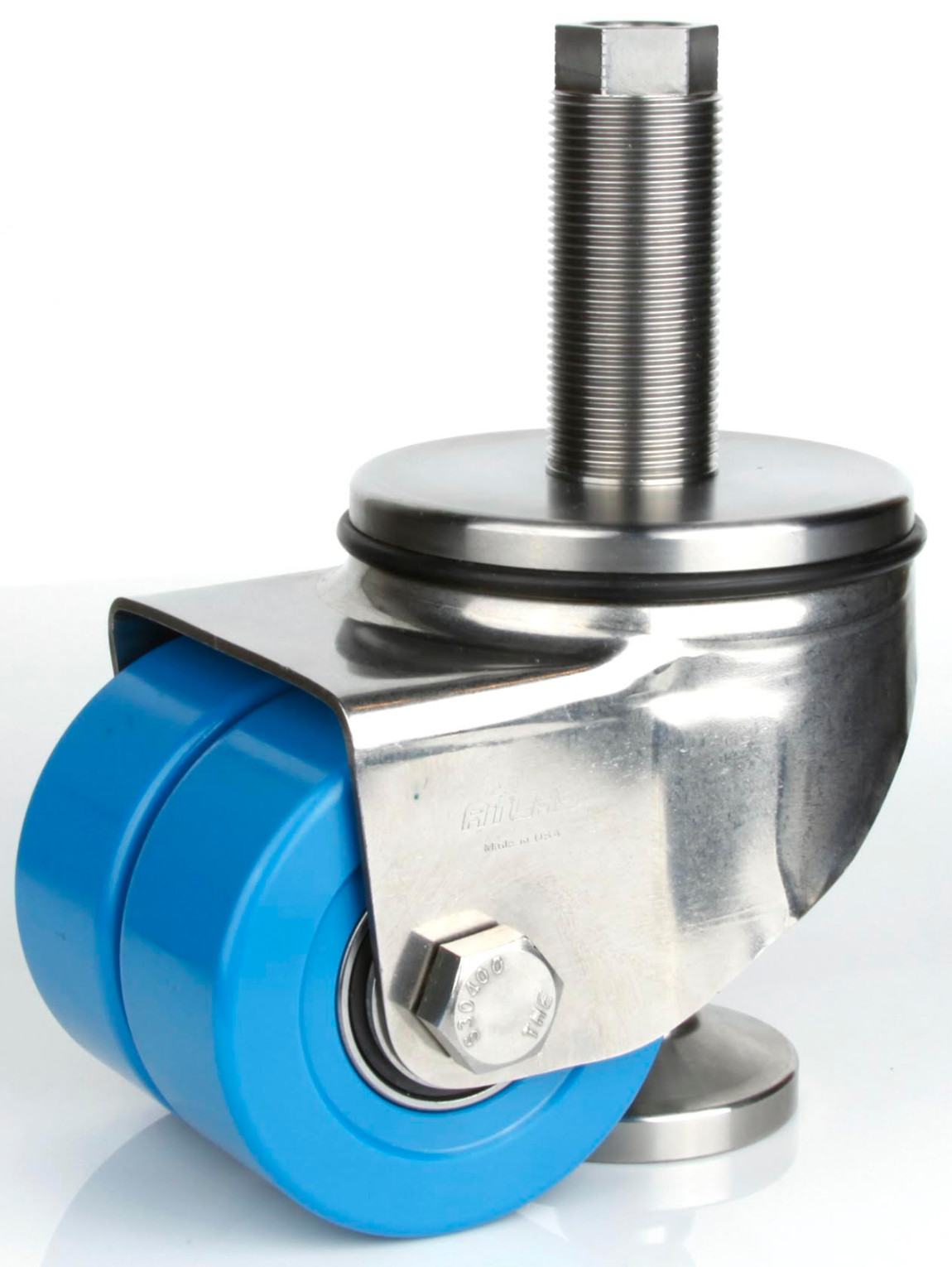

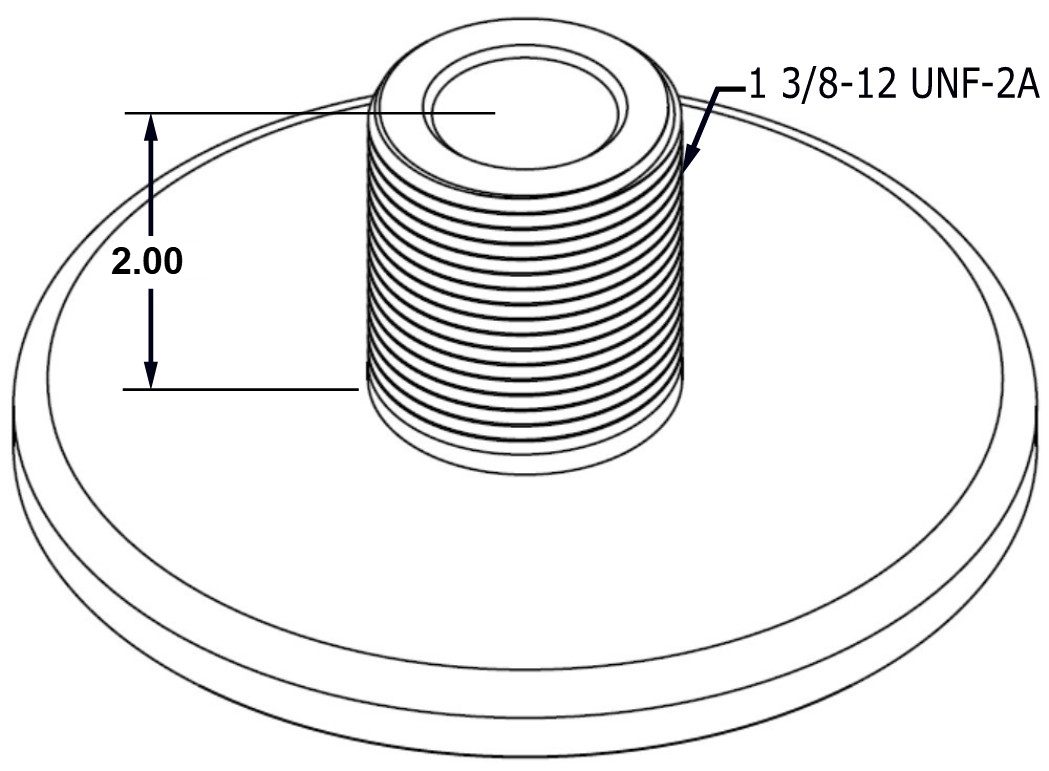

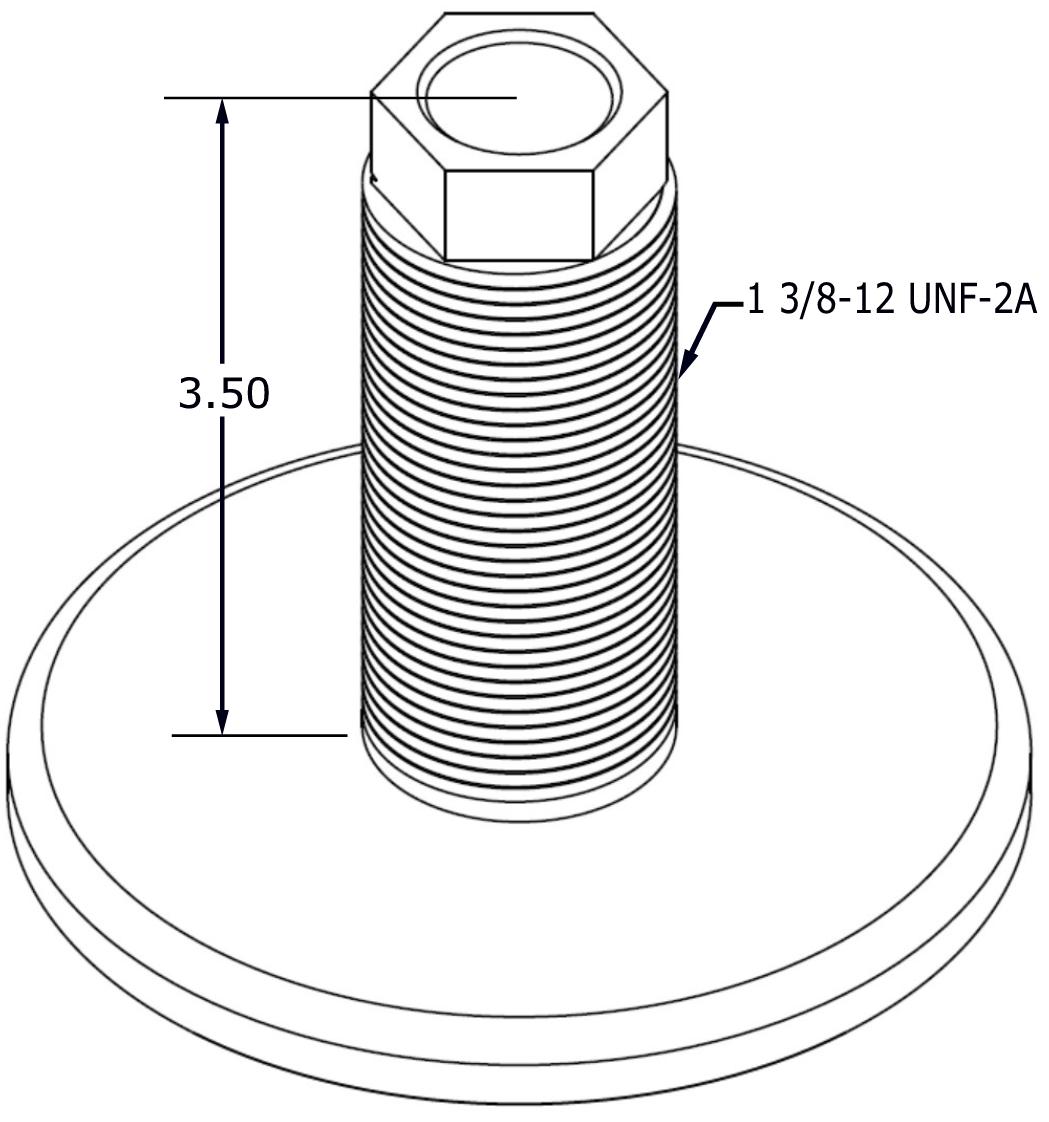

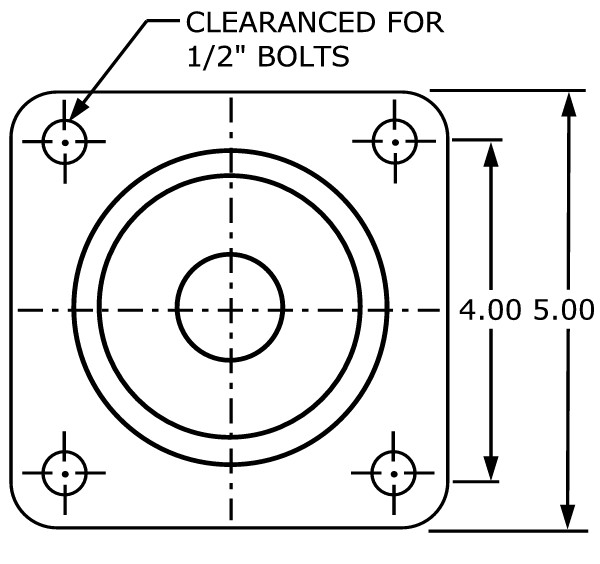

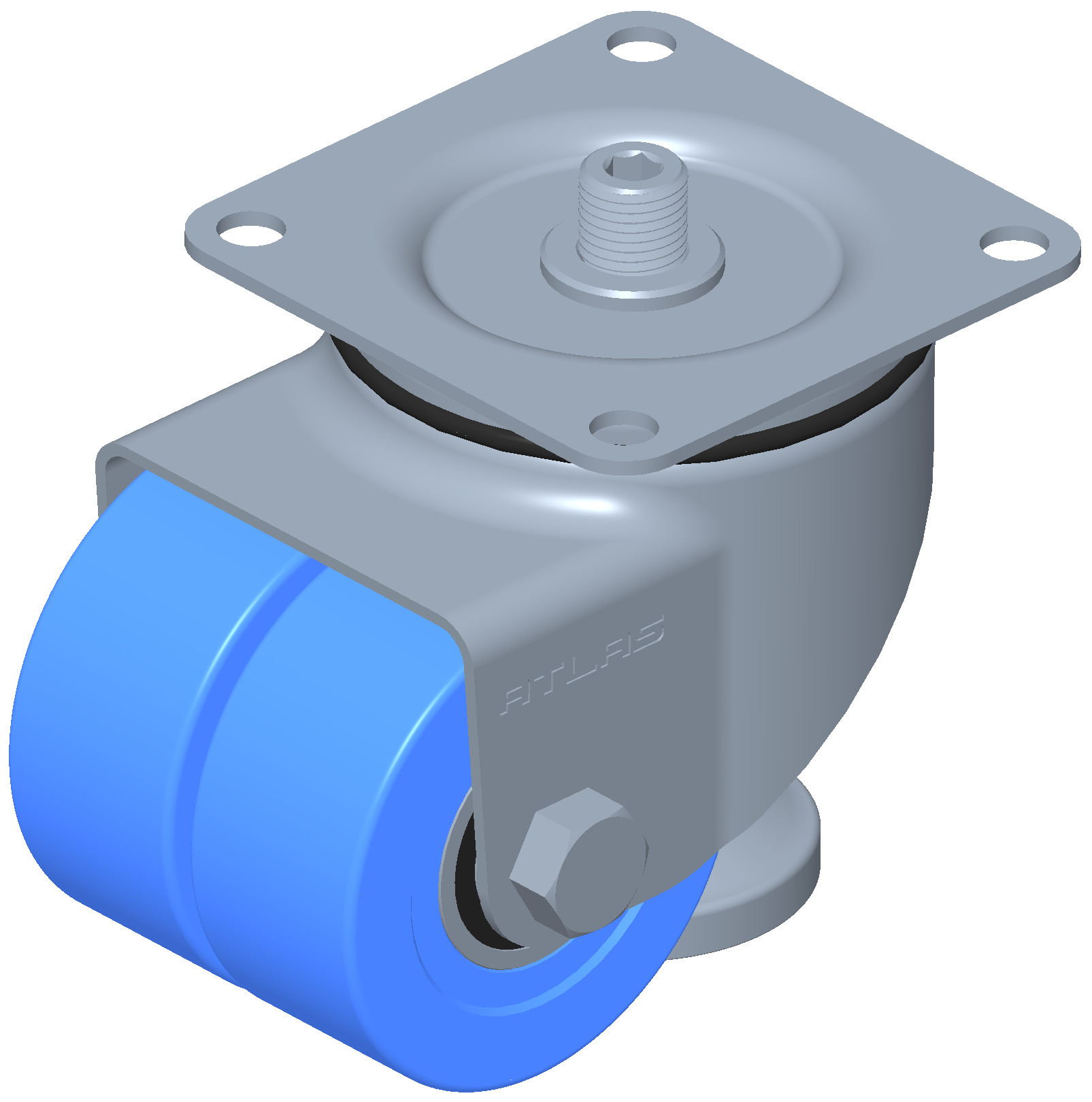

SQUARE BASEPLATE (SB) HEAVY DUTY STEM (HT) HEAVY DUTY ADJ STEM (HX)
NOTES
  • the Square Baseplate (SB) model is not available until 2ND Quarter 2019.
  • phenolic wheels are also not available at this time.
